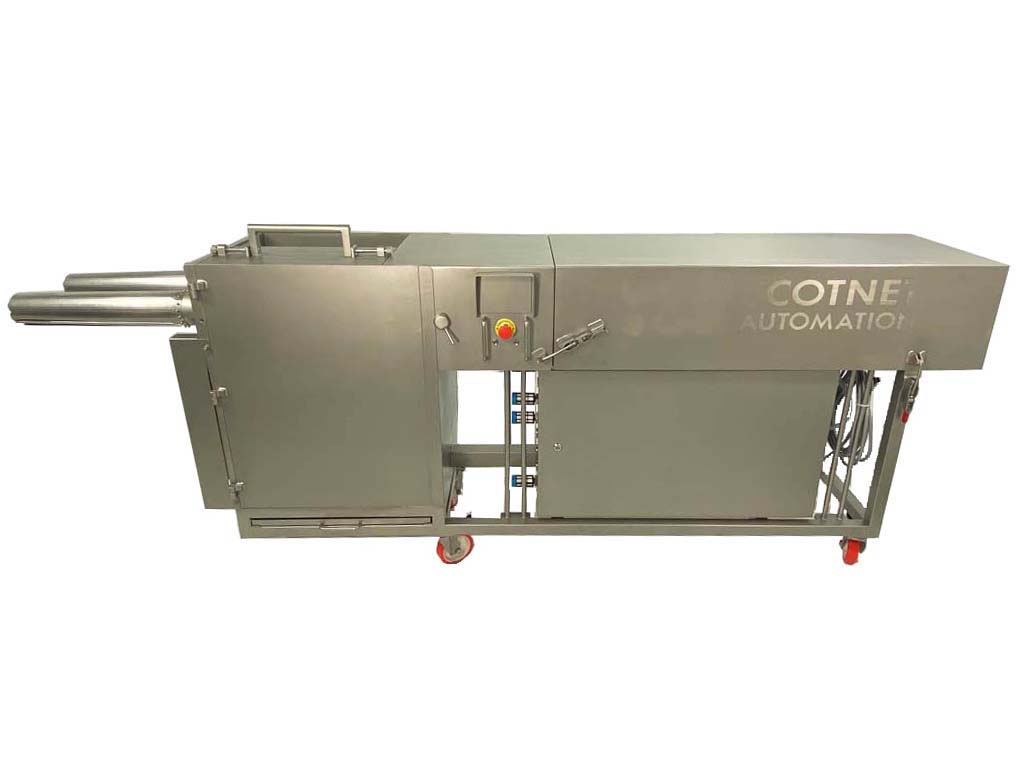

DS1200P7XP 800MM CHAMBER HIGH SPEED A/MATIC PRESS
Product # DS1200P7XP800
DS1200P7XP800 HIGH SPEED DOUBLE MEAT PRESS
OUTPUT: UP TO 1000 UNITS PER HOUR - 2200 METERS PER DAY
About The Double Meat Press
This model has an extra-long chamber at 800mm and is for tubes that are 300mm long, and between 70mm and 200mm in diameter.These Double Meat Press machines are also known as ham presses, meta press, dual press or a euro press. Frequently used for ham making machinery, it first presses the meat, before stuffing it into casings or netting.
We design our own meat pressing machinery, which are focussed on meat casing machinery and ham making machinery. The 'Scotnet Meat Press' is one of the market leaders in for double meat press machines.
Key Features
- Double-Sided - Twice the output no more staff
- No tools or engineers needed for chamber size change
- Works with standard 600 mm Scotnet Tubes.
- Works with standard 600 mm Scotnet Casing (finger) Tubes.
- HMI controlling machine functions, reporting output and efficiency figures, password protection and engineering diagnostics.
- Pneumatics manufactured by Festo. Spare parts are easily accessible worldwide through Festo distributors or direct from SCOTNET.
- Ewon - Operating on either LAN or sim card - our remote access to the machine allowing your engineers or ours to log output and diagnose faults remotely.
- The entire DS1200P7 range is controlled by PILZ safety relays. All connections are at least IP65 or above, ensuring reliability in even the wettest environments.
- Chamber sides open for easy cleaning and fast tool-less size change.
- Emergency Stop buttons mounted on both sides.
- Operated with compressed air and single-phase power supply.
- CE marked.
- Braked Castors on ensuring secure footing while working and easy movement when required.
- Simple operation, simply close lid to start operation
Options
- AWI Automatic Water Injection
Injects a fine spray of water into each chamber each cycle to allow easy movement of dry products such as pork. - SSL Selectable Stroke Length
Allows shortening of piston strokes, to optimise shape. - APH Automatic Piston Hold
Pausing the piston in its outward position, to allow further shaping of the product.
Downloadable Media
| PDS1200P8XP Press Brochure |  |
Video Media
The P8XP meat press advert.
A detailed look round the P8XP meat press.
