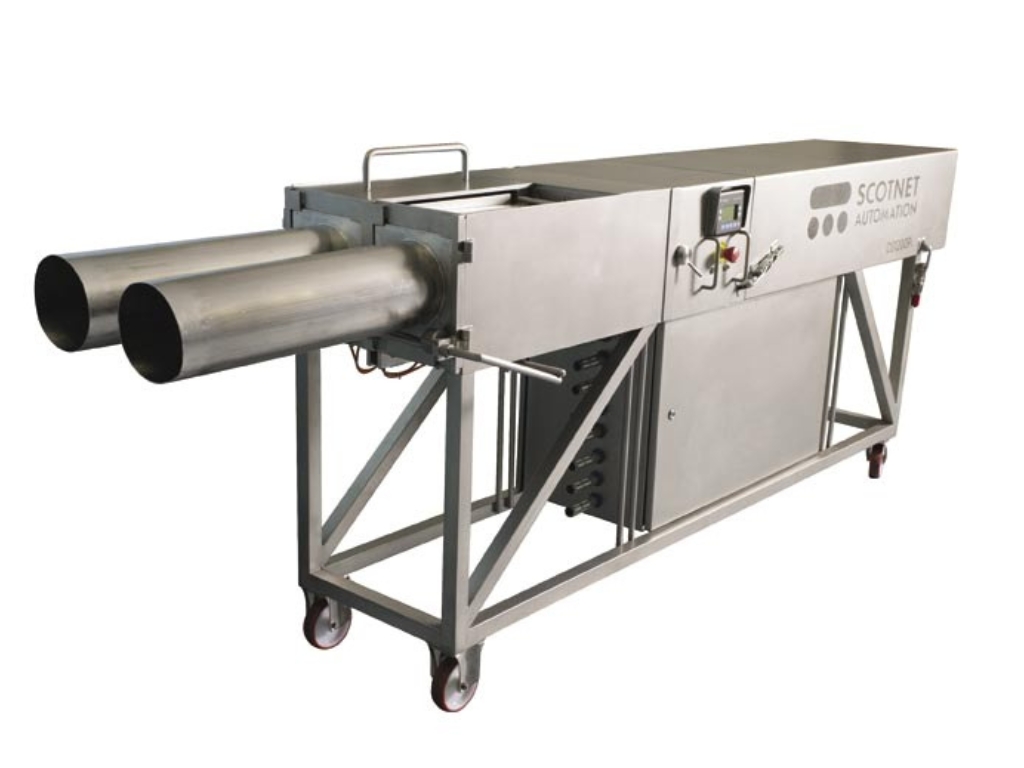

DS1200P7S HIGH SPEED STUFFER 70MM-200MM

Product # DS1200P7S

DS1200P7s - The Original And Most Advanced Double Stuffer Ever

About the DS1200P7s Double Stuffer

The DS1200P7s is Scotnet's most advanced double stuffer to date - engineered to deliver high throughput, labour savings, and superior product consistency. With precision controls, remote monitoring, and intelligent automation, it outperforms both manual and single-stuffer setups with ease.

Two operators can easily handle 1200 joints per hour, with minimal fatigue.

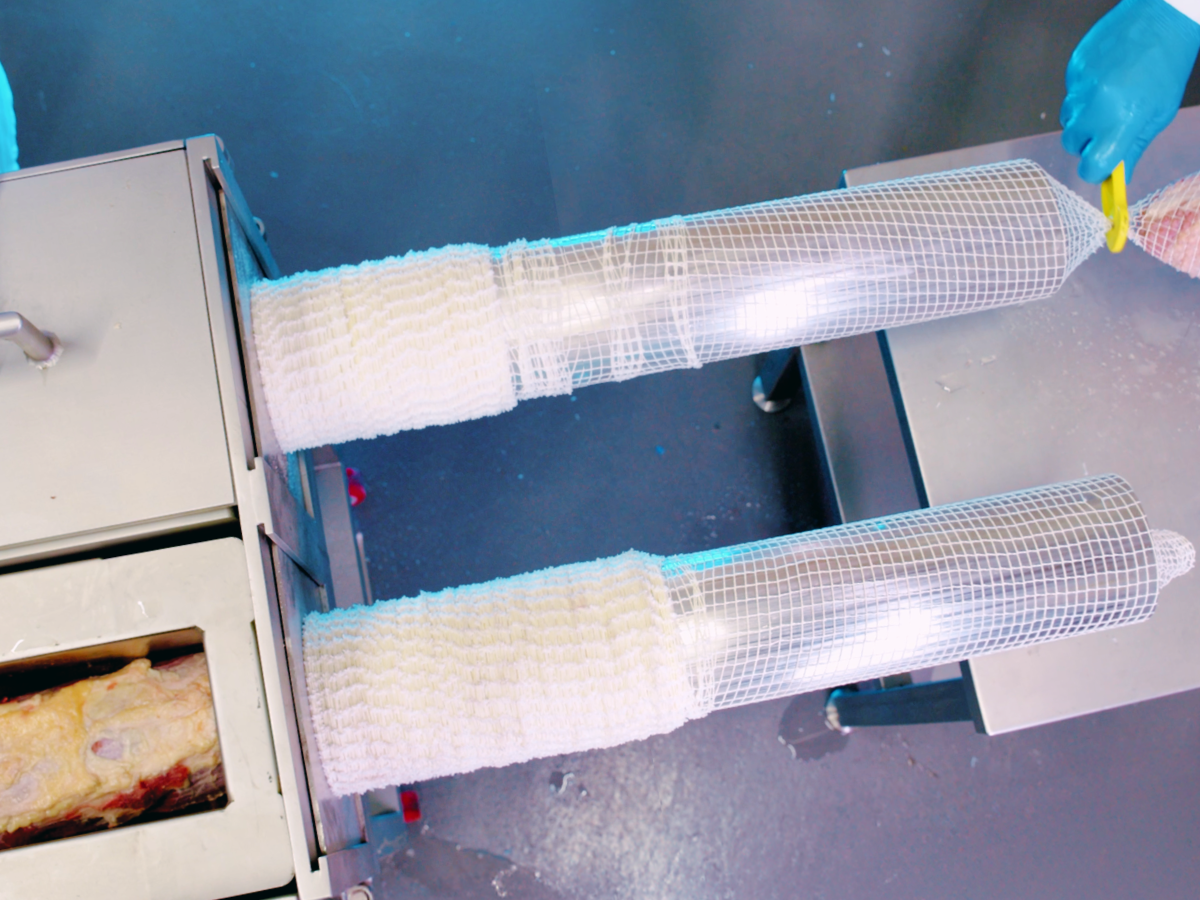

Reduce Downtime - Reduce downtime and achieve a consistent output of 1200 units per hour, with two operators. One operator loads the joint into the chamber, while the second cuts the netted joint from the opposite side. Downtime is eliminated as each operator is always working.

Easy Operation - Operating the machine is simple, slide the lid to start the cycle, no buttons to press. The intuitive HMI touchscreen interface clearly shows if guards are not in place, and puts key functions, efficiency reporting, and diagnostics at your fingertips.

Easy To Clean - Fully stainless steel design with quick-clean access built in, no tools or engineers required to prepare the machine for cleaning.

Remote Monitoring - Reduce your engineering cost and line downtime by resolving issues remotely, whilst also tracking peak performance, with the secure cloud-based monitoring system.

Key Benefits

Up to 1200 units per hour - high output with fewer staff.
Three-operator setup vs 7 for manual - reduce labour without reducing speed.
Works with all net sizes from 80mm to 200mm (250mm with EH model).
Fast, tool-free changeovers and open-access chamber cleaning.
Full stainless build, IP65 components, and PILZ safety relays for maximum hygiene and safety.
Remote access and diagnostics via secure, cloud-based EWON system.
Intuitive HMI interface with output reporting, diagnostics, and password protection.

Optional Features

AWI - Automatic Water Injection: sprays water into each chamber per cycle for smooth handling of dry products.
SSL - Selectable Stroke Length: shortens piston travel to optimise product shape.
APH - Automatic Piston Hold: pauses the piston at full extension for further shaping control.

Performance & Technical Specifications

Speed: Over 1200 units per hour
Power Supply: Single Phase, 2A, 0.5kW, 230V 3 pin single phase
Pneumatics: 80-102 PSI (5.5 -7 BAR), 1415 L/min
Weight: Approx. 450kg
Build: Full stainless steel, open-side access, IP65 protection
Cleaning: Tool-free diameter change, with easy chamber access
Interface: HMI screen graphical guard illustration, and with real-time output data and secure diagnostics
